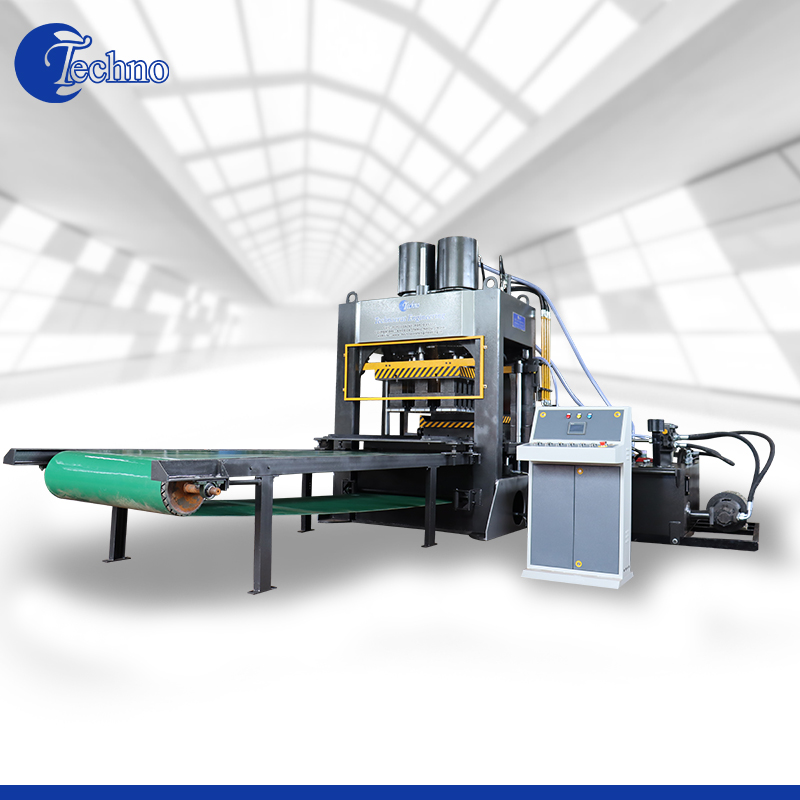

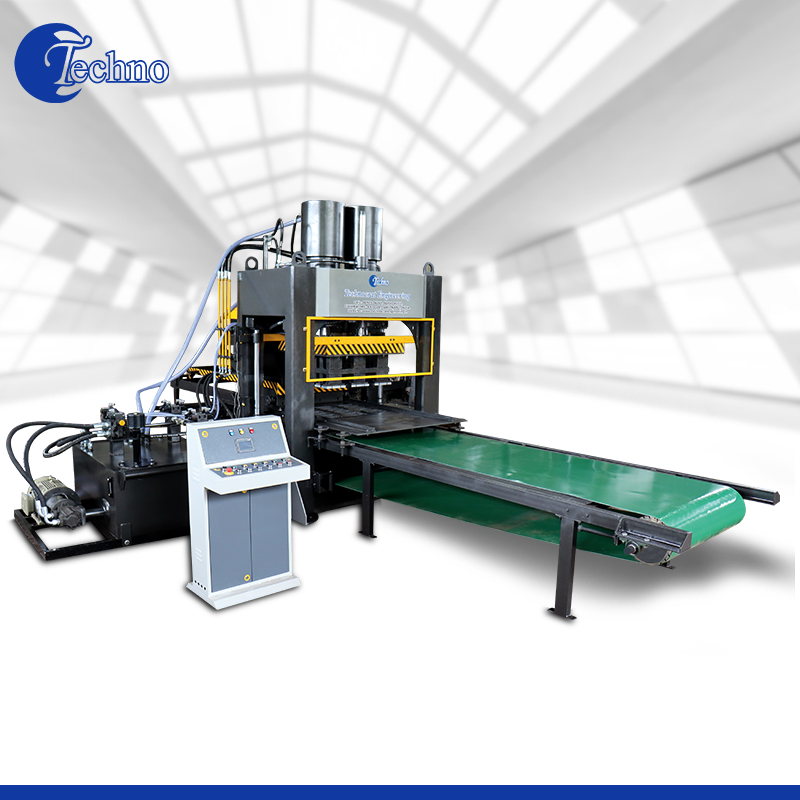

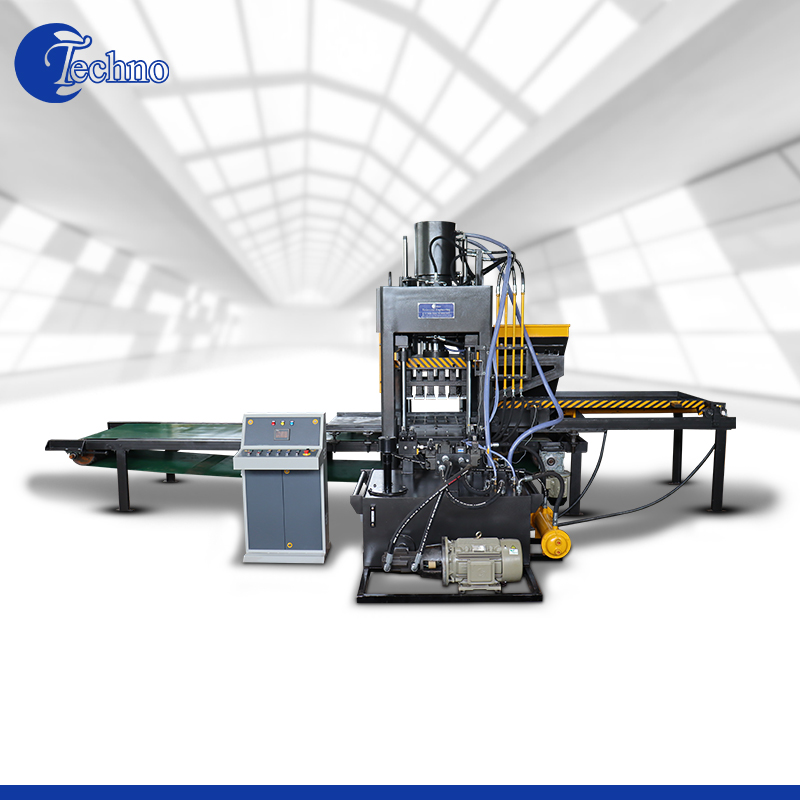

Our Techno 10 Fly Ash Brick Machine is a small range production unit. This machine offers 14,000 to 15,000 bricks/8 hours. We provide conveyor for production process and bricks collection. We help you in terms of generating ROI for your business with our experts customized plan.
| SPECIFICATIONS | TECHNO 10 |
| Power Hydraulic Motor | 15 Hp |
| Brick Eject Conveyor Motor | 2 Hp |
| Production | 10 Bricks / Per Stroke (9"X4 1/4"X3") |
| Cycle Time | 15-20 Seconds |
| Pre Fill Hydraulic System | For Quick Operation |
| Hopper Capacity | 500 Kg |
| Operating Pressure | 140-200 Bar |
| Capacity | 14000 – 15000 Bricks/8 Hours (Shift) |
| Hydraulic Oil System Capacity | 420 Litres |
| Conveyor Used For | Production Process & Bricks Collection. |
| Pressure Control | Automatic |
| Body | Single Plate Fabrication |
| Brick Mould Changeable System | Frog On The Bricks |
| Feature | Anti - Brick Crack Mould System |
| Control Panel | PLC Systems |
